The PC fails to detect Action Replay DS and Code Manager software continually reports waiting for DS

Possible Reasons -


  1. Have you selected the Update button from the console`s touch screen when the Action Replay DS is set to its home screen? This puts the Action Replay DS to the update mode.

  2. Have you tried connecting the product directly to alternative known working USB port on your PC instead of on a USB hub?

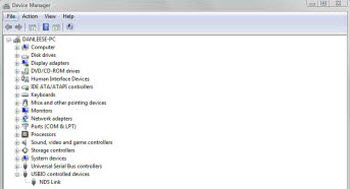

  3. Is the Action Replay DS installed correctly? Within device manager, Action Replay DS should be listed under the USBIO-Controlled Devices section as NDS Link as shown below.

    If Action Replay DS is listed within device manager under a section named Other Devices, you need to install drivers. Windows XP users, please use Section 4, and Windows Vista 32bit users please use Section 5.

    Vista DM NDS Link installed2.jpg

  4. Windows XP users: follow these steps to manually install the Action Replay DS drivers, so the product is installed correctly as NDS Link under the USB IO- Controlled Devices section.

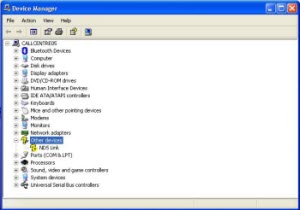

    View the Action Replay DS’s icon `NDS Link` within device manager and double-click the `NDS Link` icon to display the NDS Link properties screen.

    NDSAR DM OD.jpg

    On the shown NDS Link properties screen, select Driver and select Update Driver

    NDSAR properties2.jpg

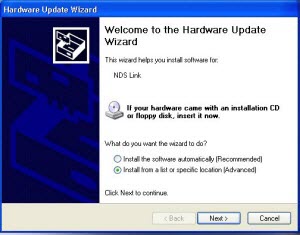

    On the shown Hardware Update Wizard screen, select `Install from a list or specific location (Advanced)` and select `next`.

    ARDS HWUD 1.jpg

    On the shown screen, select `Don’t search, I will choose the driver to install` and select `next`.

    ARDS HWUD 2.jpg

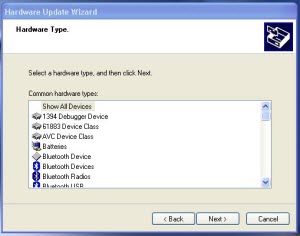

    On shown screen, with the hardware type set to `Show all Devices`, select `next`.

    ARDS HWUD 3.jpg

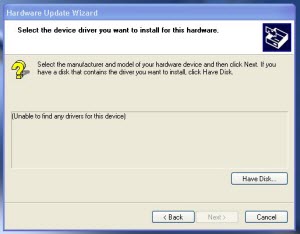

    On the shown screen, select `Have disc`

    ARDS HWUD 4.jpg

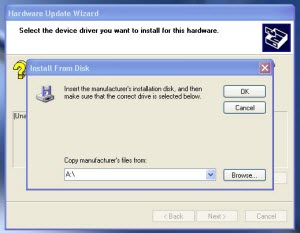

    On the shown screen, ensuring the provided PC software disc is already inserted in your PC, select `Browse`.

    ARDS HWUD 5.jpg

    On the shown screen, using the look in drop-down tab, select your CD drive, highlight the file named `ndalink.inf`, select `open` and select `OK`.

    ARDS HWUD 6.jpg

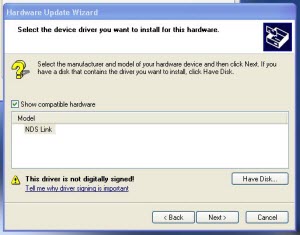

    On the shown screen with `NDS Link` highlighted, select `next`.

    ARDS HWUD 7.jpg

    When the Hardware update wizard has finished installing the NDS Link drivers, select `Finish` on the shown screen.

    Action Replay DS should now be installed correctly as NDS Link under the USBIO controlled devices section within device manager.

  5. Windows Vista users: follow these steps to manually install Action Replay DS’s drivers so the product is installed correctly as NDS Link under the USB IO Controlled devices section.

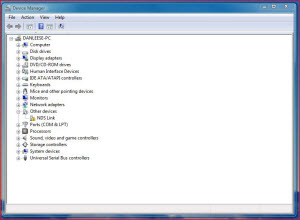

    View the Action Replay DS icon `NDS Link` within device manager, and double-click the `NDS Link` icon to display the NDS Link properties screen.

    Vista DM NDS link OD.JPG

    On the NDS Link properties screen, select `Driver` and then select `Update driver`.

    NDSAR properties2.jpg

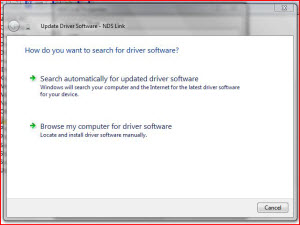

    On the shown Update driver software screen, select `Browse my computer for the driver software`.

    Vista UDS1.JPG

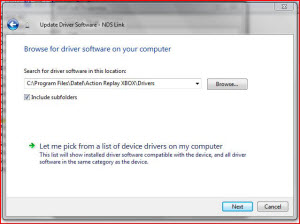

    On the shown screen, select `Let me pick from a list of device drivers on my computer`.

    Vista UDS2.JPG

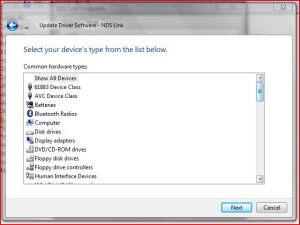

    On the shown screen, with `Show all devices` highlighted, select `Next`.

    Vista UDS3.JPG

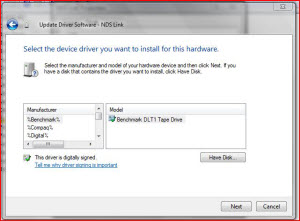

    On the shown screen, select `Have disc`.

    Vista UDS4.JPG

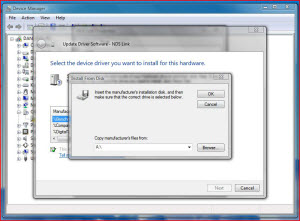

    On the shown screen, ensuring the provided PC software disc is already inserted in your PC, select `Browse`.

    Vista UDS5.JPG

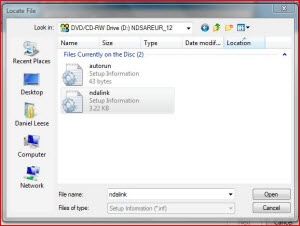

    On the shown screen, using the look-in drop-down tab, select your CD drive, highlight the file named `ndalink.inf`, select `open` and select OK on the previously-opened screen.

    Vista UDS6.JPG

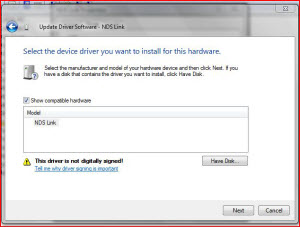

    On the shown screen, with `NDS Link` highlighted, select `Next`.

    Vista UDS7.JPG

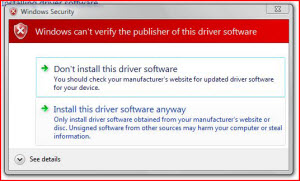

    If you are shown the Windows security message below, this is perfectly normal. Select `Install this driver software anyway` to continue with the driver installation.

    Vista UDS8.JPG

    Action Replay DS should now be installed correctly as NDS Link under the USBIO controlled devices section within device manager.

If you continue to experience problems, please contact us answering the following questions –

Can you confirm Action Replay DS is set to the Updated Mode on your console?

Can you confirm you tried connecting the product directly to an alternative known working USB connection on your PC?

Can you confirm the product is installed correctly within device manager as detailed above?

Can you confirm the version of Windows which you are using?

Can you say whether you`re using a 32bit or 64bit version of Windows?

Can you advise where and when the product was purchased?


Discuss this Article or Ask Additional Questions
Question by: flamingstar17, 10 February 2009
action replay ds vista 64 bit
so if there are no drivers for my vista 64 bit, how can i update my action replay ds
A: You can manually enter codes into your Action Replay DS using the Nintendo DS console. To do this, please follow the steps below. If the code list that you wish to enter does not include a Game ID and there are no other codes for that game on your Action Replay, please follow these steps to find the Game ID before beginning the code entry process: · Turn on the Nintendo DS with the Action Replay inserted · At the Main Menu when you are instructed to “Insert Game Cart”, remove the Action Replay and insert the game. · On the top screen of the DS, the name of the game (or Unknown Game) will appear. · The number under the Game Name is the Game ID. Please write down the Game ID and reinsert the Action Replay DS. 1) From the Action Replay Main Menu, click on the Star Shaped icon on the bottom left of the screen. 2) “Add New Game” should appear at the top of the Game List on the upper screen of the DS. (If not, use the arrow keys to scroll to the top of the list and highlight “Add New Game” or scroll through to find the name of the game if it is already on your list) 3) With “Add New Game” highlighted (Note: If you are adding codes to a game that already exists on your Action Replay, choose the name of the game instead), click on the icon that looks like a Pencil 4) Enter the Name of the Game 5) Enter the Game ID (See above for instructions on how to find this) 6) On the next screen, highlight “Add New Code” and click on the Pencil Icon 7) Enter the name of the Codes (You can name it whatever you want) and select Next 8) Enter the code. You must enter all lines of the code in order for it to work. You do not need to worry about spaces or new lines, they will be inserted automatically. 9) Once you’ve entered the entire code, press next. 10) Follow Steps 6 – 9 for each additional code you wish to enter.


Question by: cheatinggamer, 31 January 2009
HELLP
I connected my Action Replay to my pc but when I press "quick update" it says "failed to write a file to your action replay (not enough free space)
A: This occurs when the codelist has become corrupted however help is at hand. If you follow the instructions for resetting your Action Replay detailed in the article Does my Action Replay require resetting and then use the Code Manager PC application to copy a fresh codelist to your Action Replay you should be back on track.


Question by: Ben Ward, 11 January 2009
help
my action replay won`t find my ds.when i try to put them in manualy the bottom screen has red and blue stripes going acrss it.
A: This occurs when the codelist has become corrupted however help is at hand. If you follow the instructions for resetting your Action Replay detailed in the article Does my Action Replay require resetting and then use the Code Manager PC application to copy a fresh codelist to your Action Replay you should be back on track.


Question by: akatsuki744, 06 January 2009
32-bit? 64-bit?
How do I check if the version of Vista that I`m running is 32-bit or 64-bit?
A: 1. Click on “Start” 2. Right Click on “My Computer” 3. Choose “Properties” 4. System Info should be listed on the first / general tab.


Question by: MarkMcGee, 04 January 2009
My replay will not load codes onto the DS
My will not allow the codes to be moved onto the ds. Software keeps responding with "Action failed. no disc space"
A: This occurs when the codelist has become corrupted however help is at hand. If you follow the instructions for resetting your Action Replay detailed in the article Does my Action Replay require resetting and then use the Code Manager PC application to copy a fresh codelist to your Action Replay you should be back on track.


Question by: luccas, 27 December 2008
action replay
I have an action replay, I was all right and everything you put codes, but not what I did is delete all the codes and when I put any design espaso.What I do not have to have codes that I had before?
A: This occurs when the codelist has become corrupted however help is at hand. If you follow the instructions for resetting your Action Replay detailed in the article Does my Action Replay require resetting and then use the Code Manager PC application to copy a fresh codelist to your Action Replay you should be back on track.


Question by: ToraKetsueki, 23 December 2008
Accidently Deleted files
I accidentally deleted all the game files. Can I get them back easily? And Whenever I try to add a game back it says there`s not enough room to add anything.
A: This occurs when the codelist has become corrupted however help is at hand. If you follow the instructions for resetting your Action Replay detailed in the article Does my Action Replay require resetting and then use the Code Manager PC application to copy a fresh codelist to your Action Replay you should be back on track.


Question by: hamhand, 19 December 2008

on my action replay i will delete all games then when i add the new ones it says it doesnt have enough room but there is nothing on it
A: This occurs when the codelist has become corrupted however help is at hand. If you follow the instructions for resetting your Action Replay detailed in the article Does my Action Replay require resetting and then use the Code Manager PC application to copy a fresh codelist to your Action Replay you should be back on track.


Question by: Infernape753, 05 October 2008
My Action replay has no codes and game data and when I try to put in the game data this odd patturn

A: This occurs when the codelist has become corrupted however help is at hand. If you follow the instructions for resetting your Action Replay detailed in the article Does my Action Replay require resetting and then use the Code Manager PC application to copy a fresh codelist to your Action Replay you should be back on track.


Question by: Infernape753, 05 October 2008
My Action replay has no codes and game data and when I try to put in the game data this odd patturn

A: This occurs when the codelist has become corrupted however help is at hand. If you follow the instructions for resetting your Action Replay detailed in the article Does my Action Replay require resetting and then use the Code Manager PC application to copy a fresh codelist to your Action Replay you should be back on track.


Question by: agufungus, 20 September 2008
Can`t get the AR Code Manager to detect the AR DS on Vista
I installed the driver under the USB IO devices section, but still, I can`t get the Code Manager to detect my AR DS on my Windows Vista (32 bit on an HP laptop). The firmware is 1.54, and I bought it long time ago. Any help, please?
A: Unfortunately, some older versions of the DS Action Replay may contain hardware that is not compatible with Windows Vista. However, Vista compatible Action Replay hardware is now available, and is present in the Action Replay currently available from www.codejunkies.com, as well as many major retailers.


Question by: agufungus, 16 September 2008
Can`t get the AR Code Manager to detect the AR DS on Vista
I installed the driver under the USB IO devices section, but still, I can`t get the Code Manager to detect my AR DS on my Windows Vista (32 bit on an HP laptop). The firmware is 1.54, and I bought it long time ago. Any help, please?
A: Unfortunately, some older versions of the DS Action Replay may contain hardware that is not compatible with Windows Vista. However, Vista compatible Action Replay hardware is now available, and is present in the Action Replay currently available from www.codejunkies.com, as well as many major retailers.


Question by: james1, 14 September 2008
Action Replay on 64-Bit Windows Vista
Is Action Replay DS compatible With Windows Vista 64-Bit?
A: No. 64bit Vista is a very different architecture and so far we have not been able to create upgraded drivers that will work with the Action Replay hardware. The software itself runs but the hardware drivers are not compatible.


Question by: Jackshadow, 13 September 2008
Title
My action replay reset itself after charging how do i reboot it?
A: If you follow the instructions for resetting your Action Replay detailed in the article "Does My Action Replay Require Resetting?" and then use the Code Manager PC application to copy a fresh codelist to your Action Replay you should be back on track.
